High Precision Black Granite Inspection Surface Plate for CMM, Drilling Milling Machines for PC Board

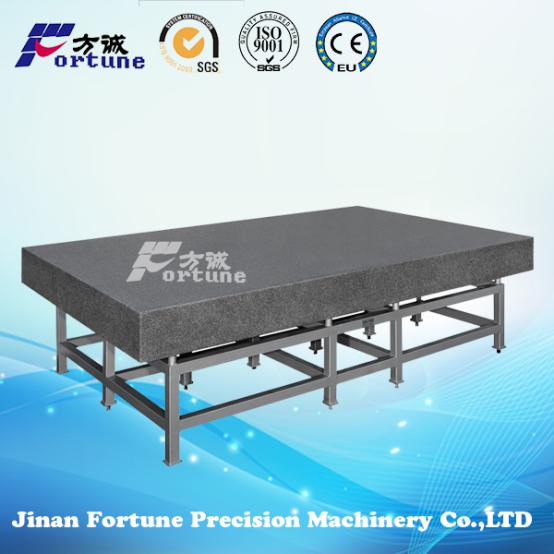

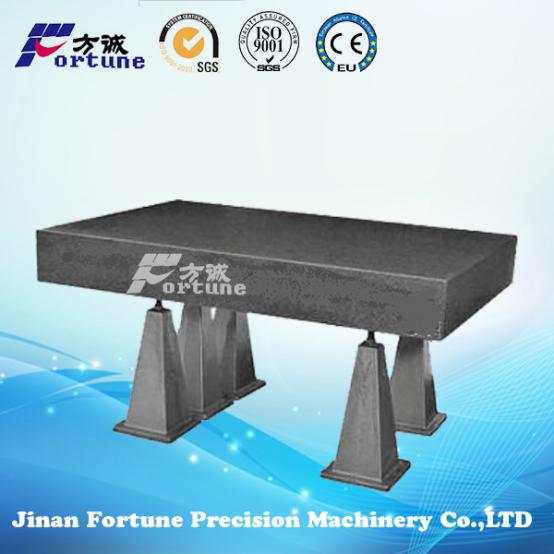

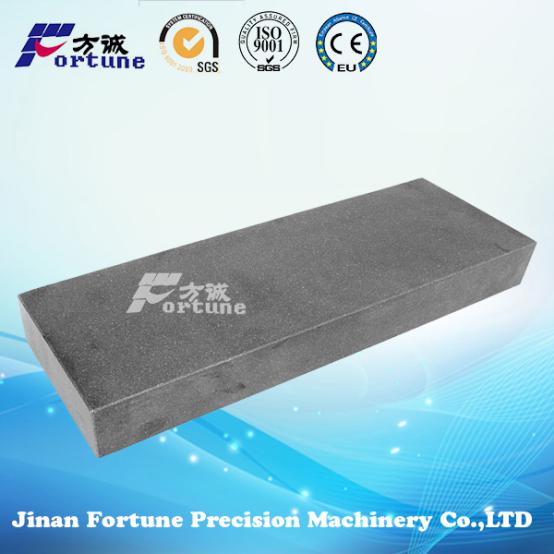

High precision black granite surface plate
High precision black granite surface plate is in black color with bright, homogeneous structure,good stability, high hardness, anti-rust and chemical-resistance.
Material: Black Jinan granite, Fujian Granite, Hebei Granite, India Granite
Standard: GB/T 20428-2006, DIN876, JIS
Specification: The maximum workability is 8000mm in length, 4000mm in width and 800mm in height or customize (special size is acceptable following customers’ requirement)
Surface: T-slots, dovetail-shaped slots, holes, etc.
Hardness of the working surface: HS70
Surface treatment: ground finish
Precision grade: 00-1
Packaging: wooden box
Specifications:
| Specification | Precision Grade (μm) | Packing VOL (mm) | Gross weight (kgs) | |||
| Grade 000 | Grade 00 | Grade 0 | Grade 1 | |||
| 160x100x50 | 0.8 | 1.5 | 3 | 6 | 270x210x150 | 8 |
| 160x160x50 | 0.8 | 1.5 | 3 | 6 | 270x270x150 | 9 |
| 250x160x50 | 0.9 | 1.8 | 3.5 | 7 | 370x270x150 | 11 |
| 250x250x50 | 0.9 | 1.8 | 3.5 | 7 | 370x370x150 | 13 |
| 300x200x50 | 0.9 | 1.8 | 3.6 | 7 | 410x270x180 | 15 |
| 300x300x70 | 1 | 1.9 | 3.8 | 7.5 | 410x370x200 | 27 |
| 400x250x70 | 1 | 2 | 4 | 8 | 510x470x200 | 30 |
| 400x400x70 | 1.2 | 2.3 | 4.5 | 9 | 528x488x210 | 46 |
| 630x400x100 | 1.3 | 2.5 | 5 | 10 | 740x490x270 | 94 |
| 630x630x100 | 1.3 | 2.5 | 5 | 10 | 750x730x270 | 155 |
| 800x500x100 | 1.4 | 2.7 | 5.3 | 11 | 920x600x280 | 155 |
| 900x600x100 | 1.5 | 2.9 | 5.7 | 11.5 | 1000x660x200 | 200 |
| 1000x630x150 | 1.5 | 3 | 6 | 12 | 1120x740x330 | 335 |
| 1000x750x150 | 1.6 | 3.2 | 6.3 | 12.5 | 1250x950x330 | 398 |
| 1000x1000x150 | 1.8 | 3.5 | 7 | 14 | 1250x1230x330 | 532 |
| 1600x1000x200 | 2 | 4 | 8 | 16 | 1870x1230x370 | 1080 |
| 1600x1600x200 | 2.4 | 4.8 | 9.5 | 19 | 1870x1830x370 | 1730 |
| 2000x1000x200 | 2.4 | 4.8 | 9.5 | 19 | 2270x1230x400 | 1345 |
| 2000x1600x250 | 2.5 | 5 | 10 | 20 | 2310x1830x460 | 2622 |
| 2500x1600x300 | 2.9 | 5.8 | 11.5 | 23 | 2810x1830x510 | 3872 |
| 3000x2000x400 | 3.3 | 6.5 | 13 | 27 | 3350x2230x670 | 7651 |
| 4000x2000x500 | 4 | 8 | 16 | 32 | 4400x2230x800 | 12800 |
| 4000x2500x500 | 4.4 | 8.8 | 17.5 | 35 | 4400x2730x800 | 16000 |
Note: We could be able to manufacture according to customer’s specification.
Delivery:
The product will be sent after signed the contract within 15 days.
PAYMENT:
L/C, T/T, D/P, D/A.
